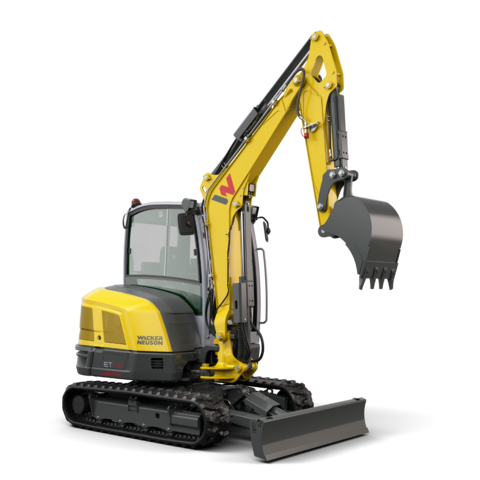

Mini excavator ET42

Daily Rental: $250.00

Weekly Rental: $900.00

Sell Price: Call us for new and used prices

Description

Full speed ahead: the ET42 mini-excavator combines proven technology with a large dose of innovation to lead the 4-metric ton class. It has the usual high lifting and digging forces, as well as fast work cycles. Thanks to modern technologies, emissions are reduced while efficiency is increased. The ET42's powerful engine meets Stage V emissions standards. The intuitive operating concept means this powerhouse is both user-friendly and comfortable for the operator, while offering an excellent view of the working area.

Features

  • With a top speed of nearly 10 MPH, travel time is reduced giving the operator more time throughout the day to get more tasks completed.
  • Spacious extended cab maximizes room and comfort for the operator to move inside the cab.
  • Quick and easy service access from the forward tilting cab and the arrangement of internal components makes it easy to maintain the machine.
  • Class leading track-on-ground of 57.2" decreases ground pressure while increasing digging performance.
  • Optional high flow hydraulics increase the range of usable attachments improving efficiency and productivity.

Specifications

Operating data

Height top of ROPS 83 in

Overall length w/ bucket 136.6 in

Overall length w/o bucket 106.6 in

Height Hinge Pin Max 125.5 in

Operating weight 8,095 lb

Rated Operating Capacity ROC 50% 3,100 lb

Rated Operating Capacity ROC 35% 2,170 lb

Dump reach 36 in

Length of track on ground 57.2 in

Dump height max. at max height 97.2 in

Angle of departure 30.7 °

Tipping angle (bucket dump) w/ bucket at max height 42 °

Ground clearance 9.1 in

Breakout force max. - Bucket 5,300 lbf

Breakout force max. - Boom 5,000 lbf

Width 67.1 in

Width Track 12.6 in

Engine / Motor

Engine / Motor manufacturer Kohler

Engine / Motor KDI 2504 TCR

Engine performance 74 hp

Displacement 151.5 in³

RPM / speed 2,750 rpm

Battery 950 CCA

Fuel tank capacity 30 US gal

Hydraulic system

Auxiliary Hydraulics- Standard Flow 20 US gpm

Auxiliary Hydraulics- High Flow 30 US gpm

Pressure aux. relief 3,500 psi

Hydraulic oil tank 2.9 US gal

Power transmission

Travel speed low 7 mph

Travel speed high 10 mph
